2021 Honda Pioneer 1000-5 Special Edition Featured

NEW CONDITION!!! UNDER 200 MILES!!!

Your Price: $26,999

2021 Honda Pioneer 1000-5 Special Edition at Kent Motorsports, New Braunfels, TX 78130

‹ ›

Reset Zoom

‹ › - +

‹ ›

Check Availability

Hi, my name is and I'm interested in this 2021 Honda Pioneer 1000-5 Special Edition . I'm in the area and you can reach me at or by phone at

	Is this unit still available?
	What payment terms are available?
	When can I test ride this unit?

Details

Status:
Pre-Owned
Vehicle:
2021 Honda Pioneer 1000-5 Special Edition
VIN:
1HFVE04G6M4500277
Model Number:
SXS10M5LSM
Hours:
20
Mileage:
186 miles
Color:
Viper Urban Camo
Location:
Kent Motorsports, New Braunfels, TX 78130
Warranty:
As Is

Specifications

BRAKES

Front Brake Diameter (in):
8.3
Front Brake Diameter (mm):
210
Front Brake Type:
Hydraulic Disc
Rear Brake Diameter (in):
8.3
Rear Brake Diameter (mm):
210
Rear Brake Type:
Hydraulic Disc

DRIVE LINE

Differential Lock Location:
Front / Rear
Driveline Type:
Selectable 4X2 / 4X4
Number Of Driveline Modes:
4

ENGINE

Bore (in):
3.62
Bore (mm):
92
Carburetion Type:
Fuel Injected
Compression Ratio:
10
Cooling:
Liquid
Cylinders:
2
Displacement (cc):
999
Displacement (ci):
60.9
Engine Stroke:
4-Stroke
Engine Type:
Parallel Twin
Fuel Injector Size (mm):
44
Fuel Injector:
Yes
Fuel Requirements:
Regular
Fuel Type:
Gas
Starter:
Electric
Stroke (in):
2.96
Stroke (mm):
75.1
Valve Configuration:
OHV
Valves Per Cylinder:
4
Valves:
8

EXTERIOR

Bash Plate (Front):
Yes
Body Material:
Plastic
Brush Guard:
Yes
Cab Canopy Material:
Hard
Cab Door Material:
Hard
CV Boot Cover:
Yes
Engine Case Guard:
Yes
Frame:
Steel
Radiator Guard:
Yes

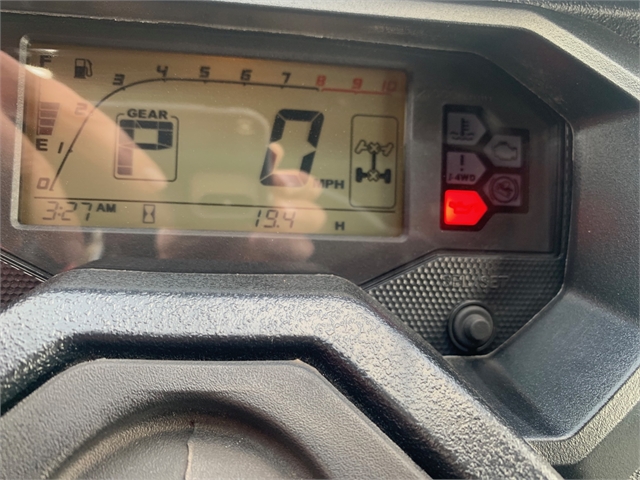

INSTRUMENTATION

Fuel Level Warning Type:
Gauge
Temperature Warning Type:
Gauge

LIGHTS

Type:
LED

SEATS

Headrest:
Yes
Number Of Rows:
2
Number Of Seats:
5
Seat Height (in):
33.1
Seat Height (mm):
840.7
Seat Material:
Vinyl
Seat Type:
Bucket

STEERING

Steering Control:
Steering Wheel
Steering Type:
Power

STORAGE

Bed Capacity (kgs.):
226.8
Bed Capacity (lbs.):
1000
Cargo Bed Material:
Polyethylene
Cargo Bed Tilt:
Yes
Number Of Cupholders:
2

SUSPENSION

Front Suspension Type:
Independent Double Wishbone
Front Travel (in):
10.6
Front Travel (mm):
268
Number Rear Shock Absorbers:
2
Rear Adjustable Shock / Spring Pre-Load:
Yes
Rear Stabilizer Bar:
Yes
Rear Suspension Material:
Steel
Rear Suspension Type:
Independent Double Wishbone
Rear Travel (in):
10
Rear Travel (mm):
254

TECHNICAL SPECIFICATIONS

Fuel Capacity (gal):
7.9
Fuel Capacity (l):
29.9
Fuel Capacity Reserve (gal):
1.7
Fuel Capacity Reserve (l):
6.4
Ground Clearance (in):
12.4
Ground Clearance (mm):
315
Height (in):
76.3
Height (mm):
1938
Length (ft):
9.73
Length (ft/ft):
9
Length (ft/in):
8.8
Length (in):
116.8
Length (mm):
2966.7
Payload Capacity (kgs):
453.6
Payload Capacity (lbs):
1000
Towing Capacity (kgs):
907.2
Towing Capacity (lbs):
2000
Turning Radius (ft):
13.8
Wet Weight (kg):
766.1
Wet Weight (lbs):
1689
Wheelbase (in):
80.2
Wheelbase (mm):
2037.1
Width (in):
63
Width (mm):
1600.2

TOWING & HAULING

Weight (kgs):
2041.2
Weight (lbs):
4500
Winch Brand Name:
Warn®

TRANSMISSION

Hi / Low Range:
Yes
Number Of Speeds:
6
Primary Drive (Front Wheel):
Shaft
Primary Drive (Rear Wheel):
Shaft
Reverse:
Yes
Transmission Type:
Manual / Automatic Clutch

WHEELS & TIRES

Front Tire (Full Spec):
Maxxis® Bighorn
Front Tire Diameter (in):
27
Front Tire Width:
9
Front Wheel Diameter:
12
Rear Tire (Full Spec):
Maxxis® Bighorn
Rear Tire Diameter (in):
27
Rear Tire Width:
11
Rear Wheel Diameter:
12
Tire Brand:
Maxxis®
Wheels Composition:
Steel
